Laird SAH58-120-16-WB

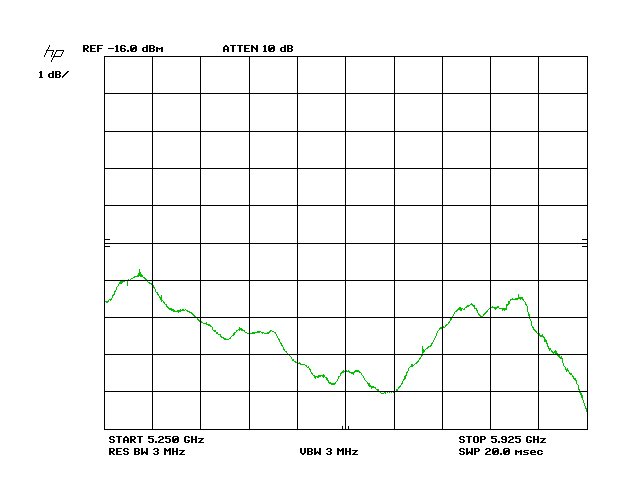

Frequency Response Curve

Indoors:

Outdoors:

Radiation Pattern

The following plot shows dB gain readings vs. antenna azimuth angle.

Output of run, no cover on antenna

Measuring ...
Detected measurement resolution of 0.575079872204 degrees.
Finding peak magnitude and angle ...
Normalizing magnitude by adding 31.6dB ...
-3dB beamwidth is 97.8187505901 degrees.
Centering on beamwidth by rotating readings -170.859374329 degrees ...
-120 degree gain = -31.7856208661dB, +120 degree gain = -22.167313908dB.
Writing results to pattern.R
Done!

General Notes

Parameter Min Typ Max Units
Frequency Range 5400 5850 MHz
VSWR 1.5:1
Impedance 50 OHM
Input Power 100 W
Pole Diameter (OD) 1.5" (38) 3" (76) Inch (mm)
Operating Temperature -40 +70 Deg C

Horizontal Beam Width: 120 deg
Vertical Beam Width: 6 deg
Polarization: Horizontal
Front to Back: >25 dB
Mechanical Downtilt: 15 deg
Weight: 1.8 lb (0.8 kg)
Dimensions: 22" x 5" x 2.8" (554 x 125 x 71 mm)

Wind loading:

Model Sq. In 100 MPH 125 MPH
SAH58-WB 110 27.5 lb 43lb
